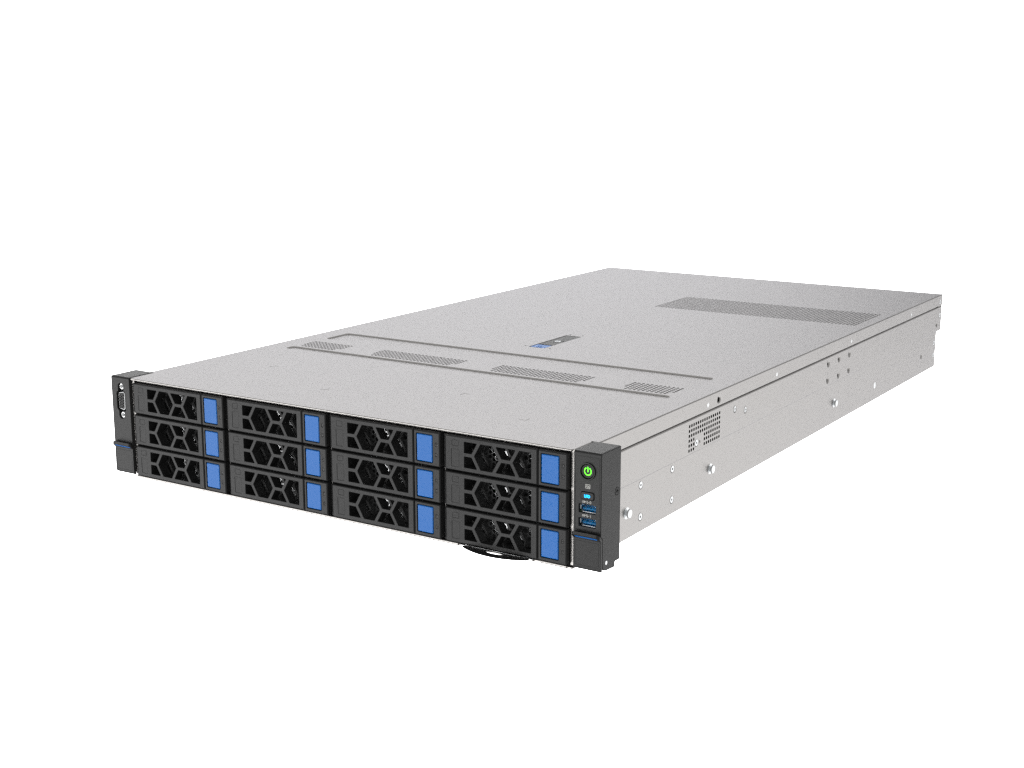

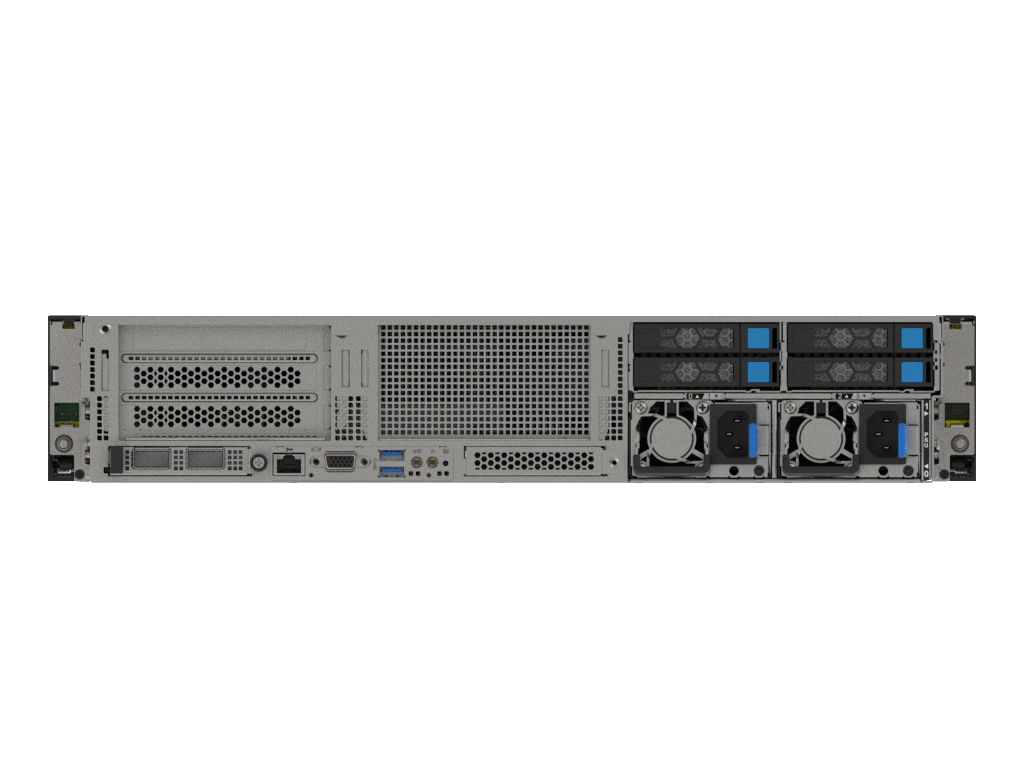

C800G7

2U Intel® Xeon® 6 ProcessorsBased Server System
•   Modular architecture to provide customers with the best performance platform ​
•   Support Support Intel Xeon 6500P&6700P&6900P 6700E/6900E series &Future Intel Future Xeon CPU​
•   DDR5 and PCIe Gen5 ready platform Design
•   Great serviceability and assembly with the Modular Design
Item
Description
Form Factor
2U1N Rackmount​
W x H x D: 447.6x87x 850 mm​
(17.63x 3.43x 33.46inch)
Motherboard​
Intel® Xeon® 6500/6700/6900 series with P-cores​
Intel® Xeon® 6700/6900 series with E-cores
GPU module
Support 4 FHFL double slot GPU card
Memory
12 channels DDR5 per CPU​​
1DPC/12 DIMMs​​
DDR5 RDIMM: 7200MTs 1DPC
Storage Controller
Configuration:​​
Config 1 : 16x3.5”HDD+2xFHHL PCIe Card(12xNVMe+2PCieSlot)(16x3.5”HDD+HBA+2xPCie Slot)​​
Config 2 : 12x3.5”HDD+HBA+5xPCIe Slot(12xNVMe+2.5xPCIe Slot)​​
Config 3 : 16x3.5”HDD+4x2.5”HDD(16xNVMe+4x3.5”HDD+HBA+OCP)(16x3.5”HDD+4xNVMe+HBA+OCP)​​
Config 4 : 8x3.5”HDD+4xDW GPU+DW PCIe Card+HBA(6x3.5”HDD+2xNVMe+HBA+4xDW GPU+DW PCIe Card)​​
Config 5 : 16x2.5”HDD+1.5xFHHL PCIe Card ​​
Config 5(Front IO) :18x2.5”HDD+1xFHHL PCIe Card​​

Internal: ​​
Support 1x22110/2280 M.2 for boot device
Network Controller
Support 1 x PCIe Gen5 x16 x OCP Support NCSI
Expansion Slot
Support 11x MCIOx8 Connector + 1x MCIOx4 Connector
System Management
Support Aspeed AST2600 BMC NCSI connect to OCP 3.0, 10M/100M/1G Ethernet MAC controller
Power Supply
DC 12V From 1+1 CRPS
Fan
5+1x 6056 Fans @35’C ambient temperature with one fan rotor fail condition
